XT3350 - Semi Live Skid Trailer

images/AIP 4.42/XT3350 - SQ THUMBNAIL.jpg

Do you have an application where you need to transfer very long materials like channel or tubing inside or outside your facility?  Do you need to be able to pick up one end of the cart in order to be able to steer it into place? Are you in the market for a tough and durable skid trailer?  Have you had an experience where other manufacturer's trailers just didn't hold up?

If so check out XT3350 below, and see how it filled our customer's material handling needs. Hamilton has years of experience and expertise in the design and manufacturing of custom material handling carts and trailers.

XT3350  semi live skid, 10,000 lbs solid pneumatics hamilton carts and trailers, hamilton caster

Statement of Understanding -

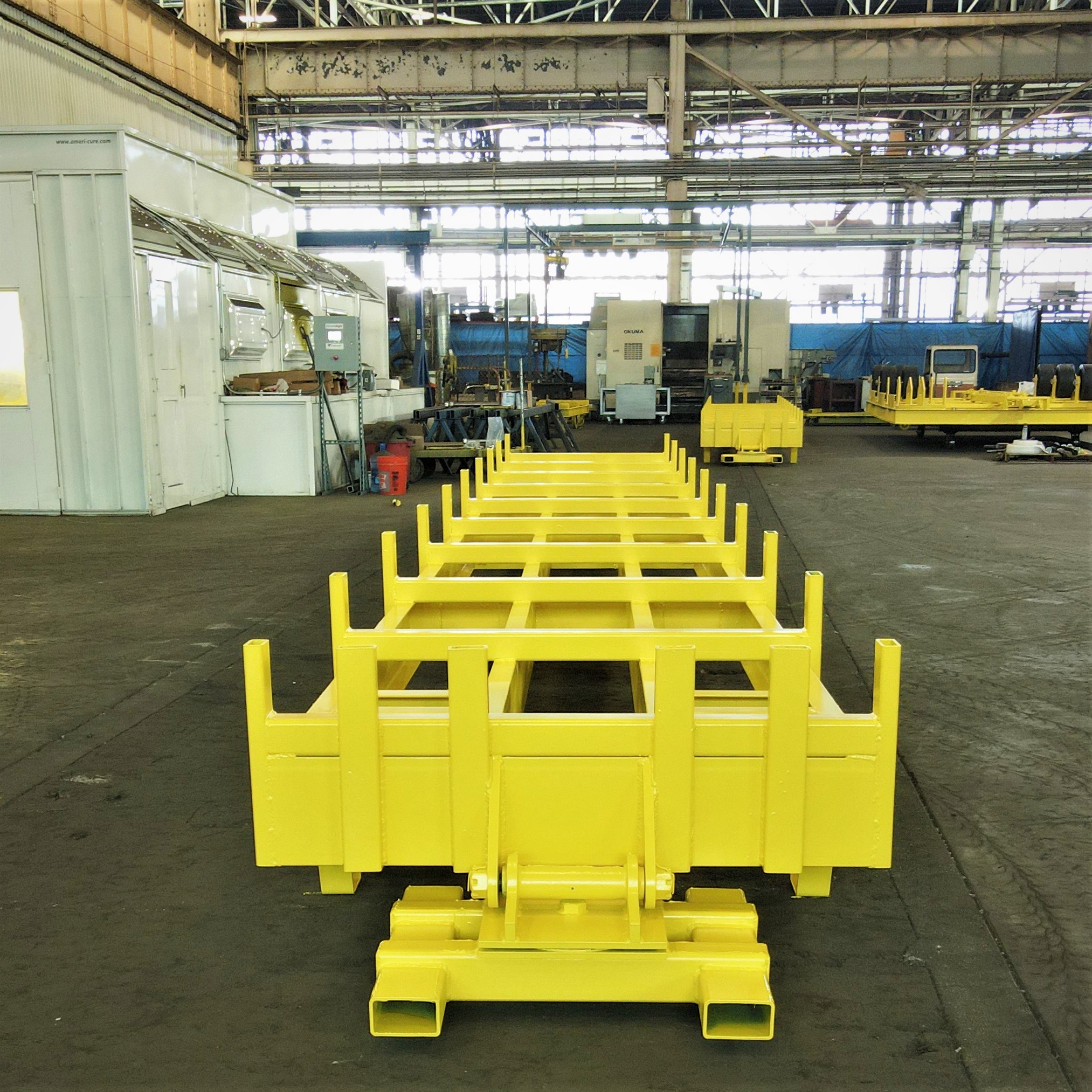

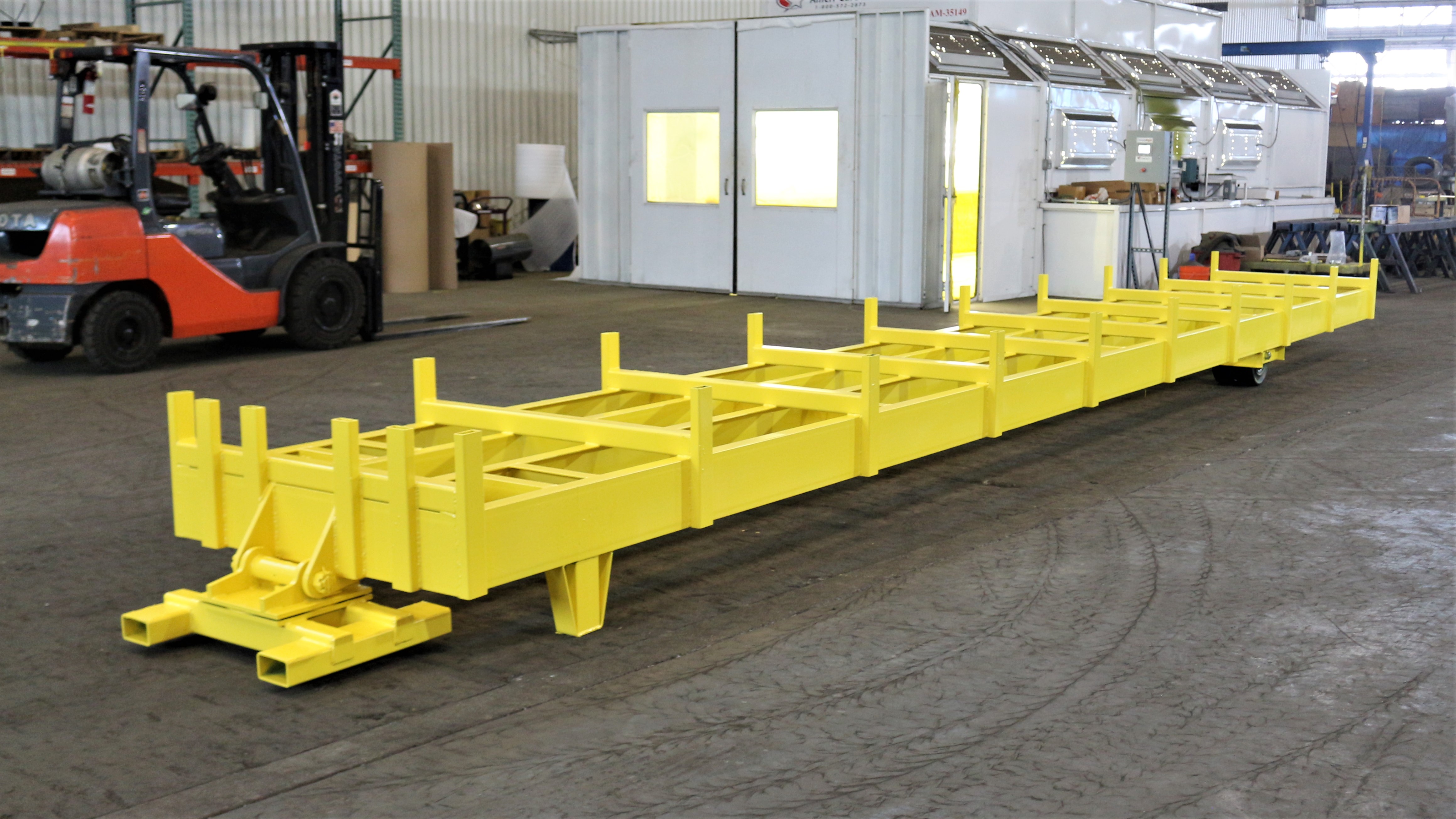

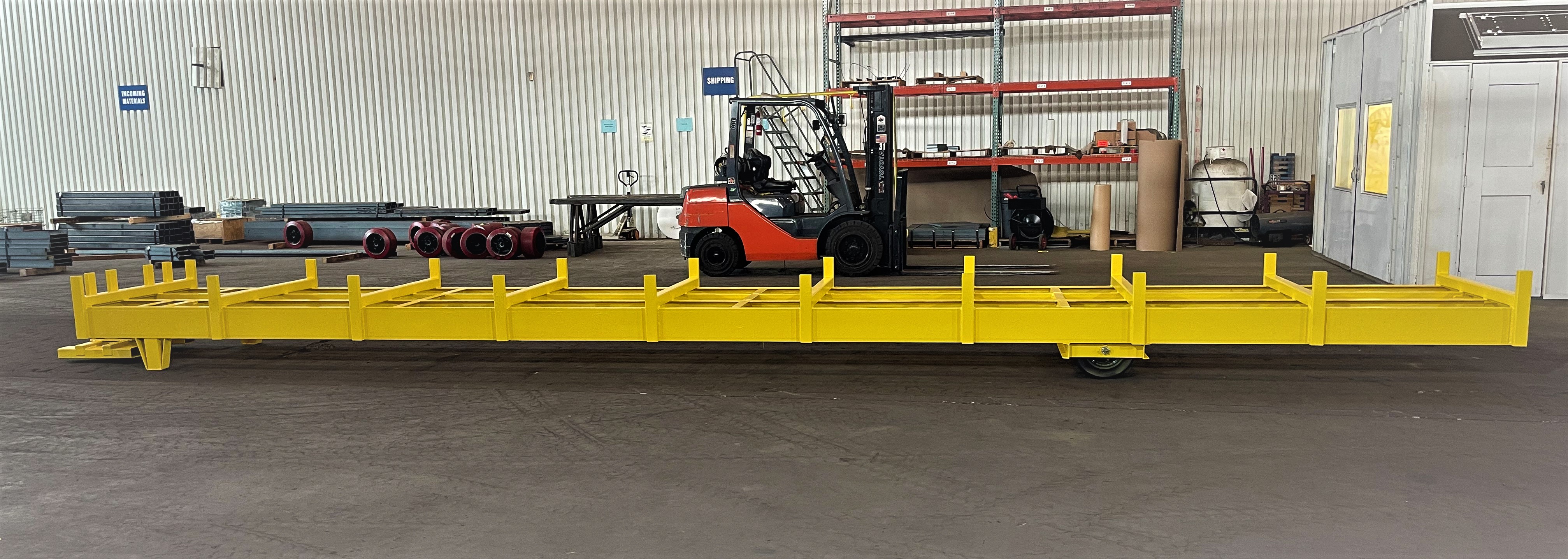

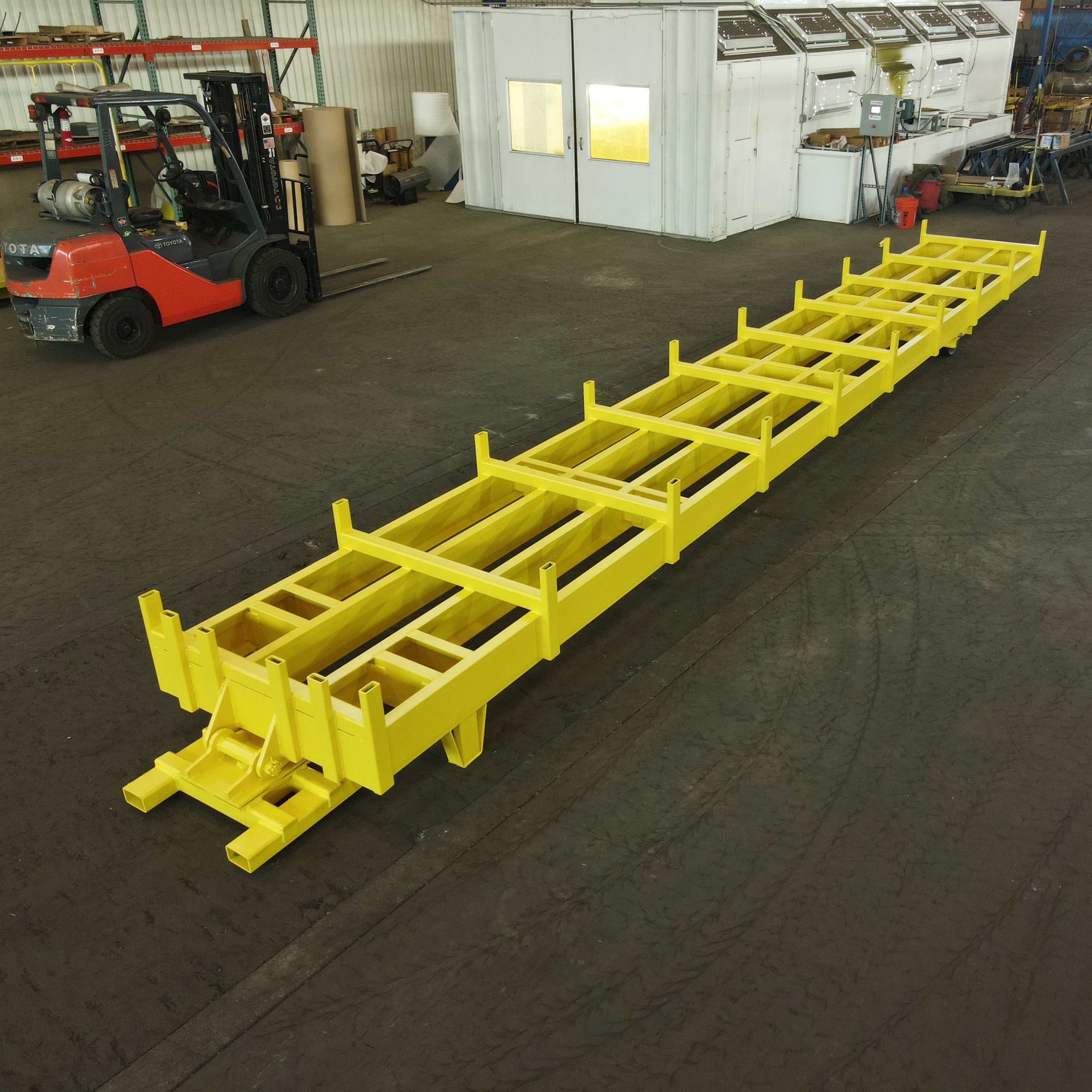

XT3350 is a Semi-live skid trailer that is used to handle long pieces of structural steel, or long weldments throughout a manufacturing facility.  A forklift picks up one end of the skid trailer and steers it, allowing the other end of the trailer to freely roll on its running gear.

There are cross rails that keeps the material off of the deck, to allow a forklift or a crane enough access to lift the material.

There are vertical stantions at the end of the cross rails that ensure that the material stays on the trailer while being transported.

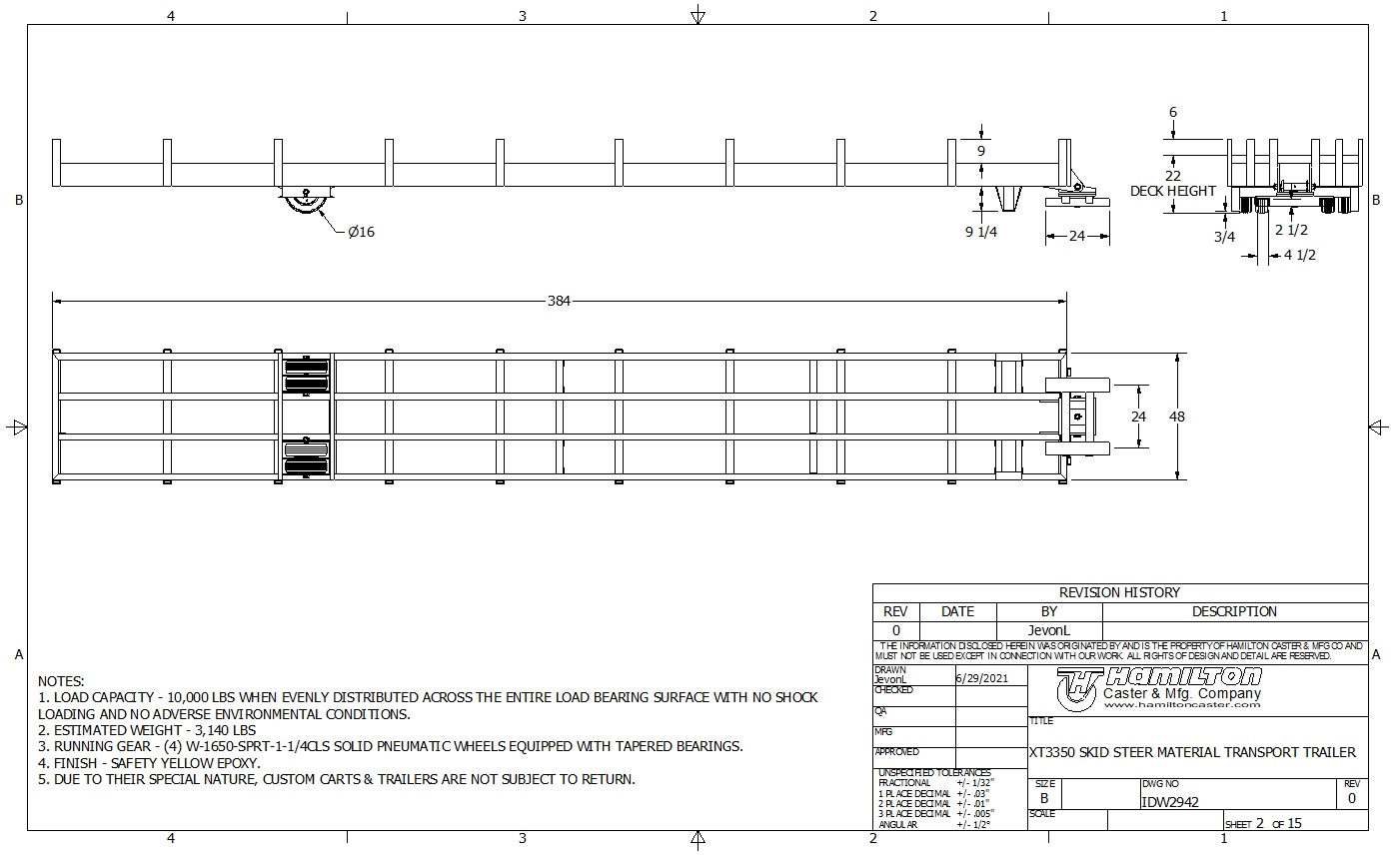

Cart Specifications -XT3350 semi live skid trailer, 10,000 lbs, hamilton, solid pneumatics

Hamilton model number - XT3350

Frame Construction - Open frame, structural steel.

Steering Type - Semi - Live Skid Trailer

Deck Size - 48" x 384"

Deck Height - 22" top of frame risers

Capacity - 10,000 lbs

Trailer Weight – 3,140 lbs

Load Support – (10) cross rails stantionsxt3350 - semi live skid trailer, solid pneumatics, carts and trailers

Running Gear – W-1650-SPRT-1-1/4

Load Support – (10) cross rails stantions

Coupler –  a hinged and rotating 5th wheel assembly with fork pockets mounted to it.  This ensures that there is no binding or grinding as the forks of the lift truck steer and guide the trailer along its intended path.

Finish – Safety Yellow



semi live skid trailer, 10,000 lbs, solid pneumatic tired wheels xt3350 hamilton caster carts and trailers



Customer Profile -

The customer is the fabrication division of a major steel service center.  They have 9 fabrication facilities and about 20 steel service centers across the United States.

Xt3350 semi live skid trailer, 10,000 lbs, solid pneumatic wheels
