e-Power Pusher 50K

Model# EP50K
Your Cost: $12,275

Push or Pull up to 50,000 lbs.

Prevents physical strain and pain associated with pushing or pulling heavy carts and other wheeled equipment.

QUALITY FEATURES
  • Heavy duty steel frame.

  • 150 Amp batteries

  • 2000 lb. differential/transaxle

  • 5000 lbs. hydraulic actuator lift kit

  • Non-marking solid fork truck drive tires

The EP50K is a heavy duty chain driven electric tugger. A powerful 6hp motor provides 2000 lbs. of push/pull force allowing for easy turning and maneuvering loads up to 50,000 lbs. Commonly used on carts with two straight casters, the 5000 lbs. of lift transfers the weight to the 3 solid fork truck tires. The EP50K is designed to let the wheels of the tugger to turn under most cart tongues, giving it the ability to make a 90° turn to the cart.

Standard Lead Time: 7 Weeks

Different ways to connect

EP50K electric lift kit raises and lowers for quick connection to carts.

Standard pintle hitch attachment.

Optional ball hitch attachment.

Dimensional Drawing

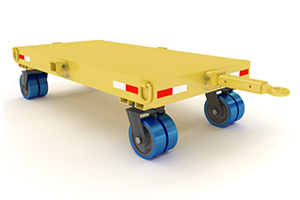

EP50K & Cart Packages available
Cart options
  • Load Capacity: 50,000 lbs
  • Frame: Structural Steel Channel
  • Deck: .25" Plate Steel
  • Deck Height: 24.375" (shown -Varies by length)
  • Platform Dimensions:
  • 48" x 48"
  • 48" x 96" (shown)
  • 48" x 120"
  • 48" x 144"
  • 60" x 60"
  • 60" x 96"
  • 60" x 120"
  • 60" x 144"
  • Pusher Interface: (4) sockets for rigid loop-type towing tongue, one each side.
  • Load retention device: (4) forged steel lashing rings; 15,000 SWL. each
  • Wheel Type: (4) S-MDD-124SYT-4SL swivel casters
  • Finish: Safety Yellow with high visibility reflective conspicuity tape
Standard Features
  • 2000 lb. Differential / Transaxle
  • 36V - (3) 150Amp Batteries
  • 5000 lbs Hydraulic Actuator Lift Kit
  • 2:1 Gear Reduction with Chain to Drive Tires
  • Safety Stop Switch
  • (3) Solid Fork Truck Drive Tires
  • 0-3 mph Fwd/Rev Variable Speed
  • Adjustable Acceleration/Braking
  • Battery Discharge Indicator
  • Heavy Duty Steel Frame
  • Pintle Hitch
  • 1 Year Limited Warranty
Optional Upgrades
  • Flashing Light and Pole
  • Safety Horn
  • Maintenance-free Batteries (set of 3)
  • Sealed AGM Batteries (110 amp/hr)
  • Trojan Batteries - (6) 150Amp Batteries
  • 9 Tooth gears (1.77 mph)
  • Dual Solid Drive Tires
  • Ball Hitch and Steel Mounting Bracket
  • Fully Enclosed Chain Guards
  • $150
  • $95
  • $225
  • $550
  • $2195
  • $485
  • $600
  • $395
  • $595
