Hamilton's robust line of heavy duty in-plant trailers, carts and trolleys guarantees the right towable equipment for your material handling needs. They are effortlessly rolling on our world class wheels and casters coupled together in trains with unyielding couplers and hitches providing years of service. Our trailers and carts are designed using the latest, state of the art 3D mechanical design software with simulation tools to ensure the most efficient use of raw materials. Hamilton leverages concepts like ergonomics, design for manufacture and assembly, continuous improvement and lean manufacturing to wring out waste giving you economical solutions to your materials handling needs. Flat out the best industrial trailers, factory carts, platform trucks, trolleys, dollies, and hand trucks available and shipped directly to your dock quickly.

  • Four Wheel Steer

    Used when towing long trains of carts through narrow factory aisles which require true-tracking service.

    See Products
  • Fifth Wheel Steer

    Economical trailer for moving large heavy duty loads like dies, tooling, metal plates, and structural steel bars.

    See Products
  • Caster Steer

    Trailer used for both towing and hand pushing, ideal for delivery of material from warehouse to shop floor.

    See Products
  • Auto Steer

    Workhorse cart that provides unrivaled utility by hauling loads with a high center of gravity and uneven loading....

    See Products

Wood Deck Platform Carts


With 6" Wheels
Capacity Range: 2000 lbs.

PB1106
6" x 2" wheels all around.


Quality Features
  • Deck of 1" select hardwood set flush in steel frame.
  • Frame of 2" x 1 1/2" x 3/16" steel angle.
  • Roller bearings and lube fittings in all wheels.
  • Casters bolted to 3/16" steel angle cross bolsters.
  • Removable pipe handle in sockets with set screws.

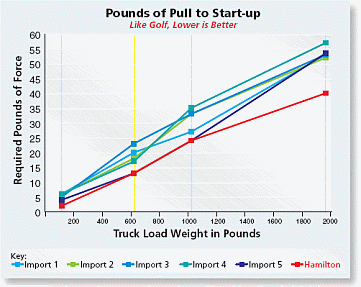

This chart shows how much easier rolling Hamilton’s Moldon Rubber tires are vs. five import wheels we tested. The tensile strength of Hamilton moldon rubber is over 1,000 lbs. vs. competitor wheels which are typically around 500 lbs.


To order or see more detail, click on suffix corresponding to desired wheel type & deck size.
Dimensions in inches
Platform
Size
Base
Model No.
SELECTION SUFFIXWeight
Lbs.
Moldon
Rubber
PlastexPolylast
