4K-Caster Steer

Industrial Trailers

Hamilton's robust line of heavy duty in-plant trailers, carts and trolleys guarantees the right towable equipment for your material handling needs. They are effortlessly rolling on our world class wheels and casters coupled together in trains with unyielding couplers and hitches providing years of service. Our trailers and carts are designed using the latest, state of the art 3D mechanical design software with simulation tools to ensure the most efficient use of raw materials. Hamilton leverages concepts like ergonomics, design for manufacture and assembly, continuous improvement and lean manufacturing to wring out waste giving you economical solutions to your materials handling needs. Flat out the best industrial trailers, factory carts, platform trucks, trolleys, dollies, and hand trucks available and shipped directly to your dock quickly.

  • Four Wheel Steer

    Used when towing long trains of carts through narrow factory aisles which require true-tracking service.

    See Products
  • Fifth Wheel Steer

    Economical trailer for moving large heavy duty loads like dies, tooling, metal plates, and structural steel bars.

    See Products
  • Caster Steer

    Trailer used for both towing and hand pushing, ideal for delivery of material from warehouse to shop floor.

    See Products
  • Auto Steer

    Workhorse cart that provides unrivaled utility by hauling loads with a high center of gravity and uneven loading....

    See Products

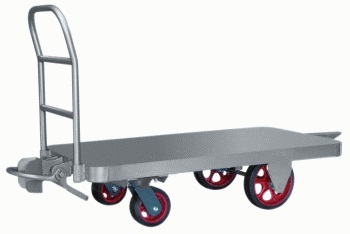

Caster-Steer Trailers

Capacity Range Up To 4000 lbs.

Ruggedly built for use in trains of up to six trailers, each features automatic couplers and a choice of wheels designed for floor protection, noise protection, and years of dependable use. In this capacity range, trailers are adaptable for either towing in trains or individual manual maneuvering. A handle at one end enables a worker to move the trailer as needed, while the couplers provide easy connection to other trailers and a tugger for towing. A rugged 12 ga. steel deck accommodates virtually any kind of load. Running gear is precisely located for optimal steering and load accommodation. Hamilton’s 4000# capacity trailers are a great fit for bottling plants, fabrication shops, and for moving heavy bulk material.

Quality Features
Moldon rubber wheels provide quieter operation during transit. Load wheels are 12” diameter x 3” wide for 3000# capacity, while the 4000# capacity trailer uses 12” diameter x 3-1/2” wide wheels. Caster wheels are 8” diameter x 3” wide for 3000# capacity, and 10” diameter 3” wide for 4000# capacity.

Fixed wheel sides and large load wheels at one end provide counter to side forces encountered during turns while being towed under loaded conditions.

The wheels feature sealed precision ball bearings (maintenance-free) minimizing costs and time to maintain while maximizing ease of rolling/pulling trailers thus conserving energy.

Steel angle center rails assure maximum structural strength as trailers are towed and pulling forces applied through the couplers at each end.

Automatic couplers facilitate easy coupling of trailers without bending or lifting. The bail at the end of one trailer slides into the jaw of an adjacent one, and locks securely into place. The release is foot operated.

Rounded corners minimize trailer “pinching” during turns.

Consult factory for pricing
