All Steel Platform Carts

Manual Carts

Hamilton's complete line of industrial platform carts, utility carts, wagons and johnson bars ensures that we will have the right hand operated material handling equipment for your warehouse, plant or shop. Two factors important in making manual material handling equipment efficient, effective and economical are quality wheels and casters and innovative designs. Hamilton has both. Our world class casters and easy moving wheels have serviced the industry for over a century. We leverage concepts like ergonomics, design for manufacture and assembly, continuous improvement and lean manufacturing along with using 3D mechanical design software to wring out waste in our designs. Bar none the best industrial platform trucks, utility shelf carts, wagons, pry bar lever dollies and trolleys you can find online.

  • Platform Trucks

    Cart with a flat deck over a structural frame rolling on wheels and casters equipped with a push handle or stakes.

    See Products

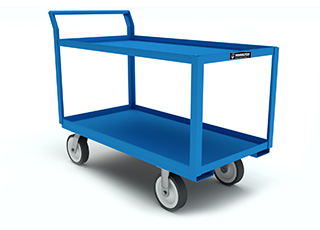

  • Shelf Trucks

    Utility shelf carts offer ample storage making them the perfect tool for order picking and delivery of small parts.

    See Products
  • Wagon Carts

    Cart similar to the platform truck, but with a running gear setup like a radio flyer wagon ideal for pulling.

    See Products
  • Semi-Live & Johnson Bars

    Johnson bars are a pry lever and dolly combined to lift and move heavy loads like machinery around a factory.

    See Products

All Steel Platform Carts

6" or 8" Wheels
Maximum Capacity: 2,000 lbs.

PM5106-H
6" x 2" wheels in two swivel and two rigid casters. Platform height 9 3/4".


PM5108-A
8" x 2" wheels in two swivel and two rigid casters (except with Pneumatic tires, size 8" x 2.80/2.50-4, 4-ply rated). Platform height 11 3/4"; 13 1/2" with 8" Pneumatics.



Quality Features
  • Deck of 12 gauge steel.
  • All welded frame and full length center rail of 2" steel channel.
  • Roller bearings and lube fittings in all wheels.
  • Casters bolted too" steel angle cross bolsters.
  • Removable pipe handle in sockets with set screws.

Available Superstructures
Style A: One removable pipe handle 26" high above deck.
Style F: Two removable pipe handles 26" high above deck.
Style H: One removable slatted pipe handle 26" high above deck.
Style I: Two removable steel slatted pipe handles 26" high above deck.

To order or see more detail, click on suffix corresponding to desired wheel type & deck size.
Dimensions in inches
Platform
Size
Base
Model No.
SELECTION SUFFIXWeight
Lbs.
Moldon
Rubber
PlastexPolylast

Dimensions in inches
Platform
Size
Base
Model No.
SELECTION SUFFIXWeight
Lbs.
Moldon
Rubber
PlastexPneumatic
Tires
Polylast
