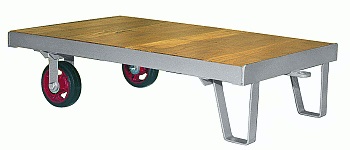

Semi-Live Skid Systems

Capacity Range: 2500 lbs.

/div>
SB715
Select Hardwood deck in steel frame.
QUALITY FEATURES: Skid System
  • Flush 1" select hardwood deck in 3/16" steel angle frame.
  • Integrally welded steel front leg assembly and rear wheel assembly.
  • Choice of 8" x 2" or 8" x 2 1/2" wheels having roller bearings and lube fittings.
  • Platform height 12 1/2".
  • Capacity 1,500 lbs. with 8" x 2" Moldon Rubber wheels to 2,500 lbs. with 8" x 2 1/2" Metal or Plastex wheels.




LJ700
8" x 2" or 8" x 2 1/2" wheels.
QUALITY FEATURES: Lift Jack
  • Steel pipe handle welded to hook and axle housing (designed only for use with Model SB715 or SM720 Skid Trucks).
  • Comfortable vinyl handle grips.
  • Maintenance-free; no springs or troublesome parts.
  • Stands upright when not in use.
  • Specify with 8" x 2" or 8" x 2 1/2" wheels to match size and type on skid trucks.


To order or see more detail, click on suffix corresponding to desired wheel type & deck size.
Semi-Live Skid Selection Table
Dimensions in inches
Platform SizeSelection SuffixWeight (lbs.)
MetalMoldon RubberPlastex
24 x 48-8M2448-85R2448-85P2448100
30 x 48-8M3048-85R3048-85P3048110
30 x 60-8M3060-85R3060-85P3060125
36 x 60-8M3660-85R3660-85P3660150
36 x 72-8M3672-85R3672-85P3672165

Lever Jack Selection Table
Dimensions in inches
Wheel SizeSELECTION SUFFIXWeight
Lbs.
MetalMoldon
Rubber
Plastex
8" x 2 1/2"LJ700-85MLJ700-85RLJ700-85P35
8" x 2"LJ700-8MLJ700-8RLJ700-8P30
