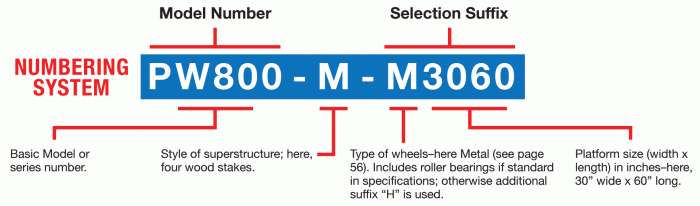

Platform Trucks Numbering System

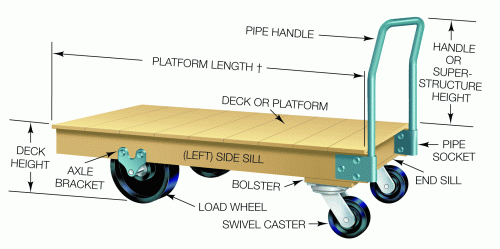

Nomenclature & Styles of Superstructures




Platform size is always measured on the platform, exclusive of superstructure protrusions. Be sure to allow extra clearance for external pipe sockets, push handles, etc.; length or width including all protrusions is overall length or overall width.


STYLES OF SUPERSTRUCTURES


For carrying certain materials, standard flat trucks are often made safer, more convenient, and more efficient by changing or adding handles or racks (superstructures).


Not every platform truck listed in the following pages can be furnished in every style. See the individual product web pages for listing of alternate styles available, if any.


When adding to superstructure, remember to allow clearance for increases in overall length or width caused by external pipe sockets, offset handles or racks, etc. Of course, styles of superstructures other than those shown here are also available for special purchase (consult factory for details).


Style A. One removable pipe handle 26"†high above deck. Style C. Four removable pipe stakes 26"†high above deck. Style D. Two bolted on steel rack 28"†high above deck. Style E. One bolted on steel slatted rack 28"†high above deck.

Style F. Two removable pipe handle 26"†high above deck. Style G. Two removable pipe stakes 26"†high above deck. Style H. One removable slatted pipe handle 26"†high above deck. Style I. Two removable slatted pipe handles 26"†high above deck.

Style J. One removable steel latticed pipe handle 26"†high above deck. Style K. Two removable steel latticed pipe handle 26"†high above deck. Style L. Two removable hardwood stakes 29"†high above deck. Style M. Four removable hardwood stakes 29"†high above deck.


           † Certain exceptions occur on a few models, and variations of more than 1" are spelled out on individual specifications.
