Drum Cradles

Load Capacity: 800 lbs.

>
DR545


QUALITY FEATURES

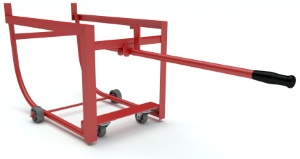

This sturdy, all-welded steel drum cradle comes ready to use–no assembly. Features two 2 1/2" swivel casters at one end and two 3" sintered iron wheels at the other. Wheels are plain bore. Model DR545 comes with sliding hook; if no handle desired specify DR545-L. Also available without wheels (DR546), or without wheels or handle (DR546-L). Height 19" (incl. wheels), width 17", length 31" (excl. handle). Capacity 800 lbs. Weight 32 lbs.




For proper use, simply:
1) lean cradle against drum with nose prongs astride bottom chime;
2) pull out handle and position hook over chime of drum;
3) pull back on handle and drum will seat onto prongs for tipping into horizontal position.

Dimensions in inches
Model No.Description
DR545Includes Wheels & Hook
DR545-LIncludes Wheels & No Hook
DR546No Wheels & Includes Hook
DR546-LNo Wheels & No Hook
